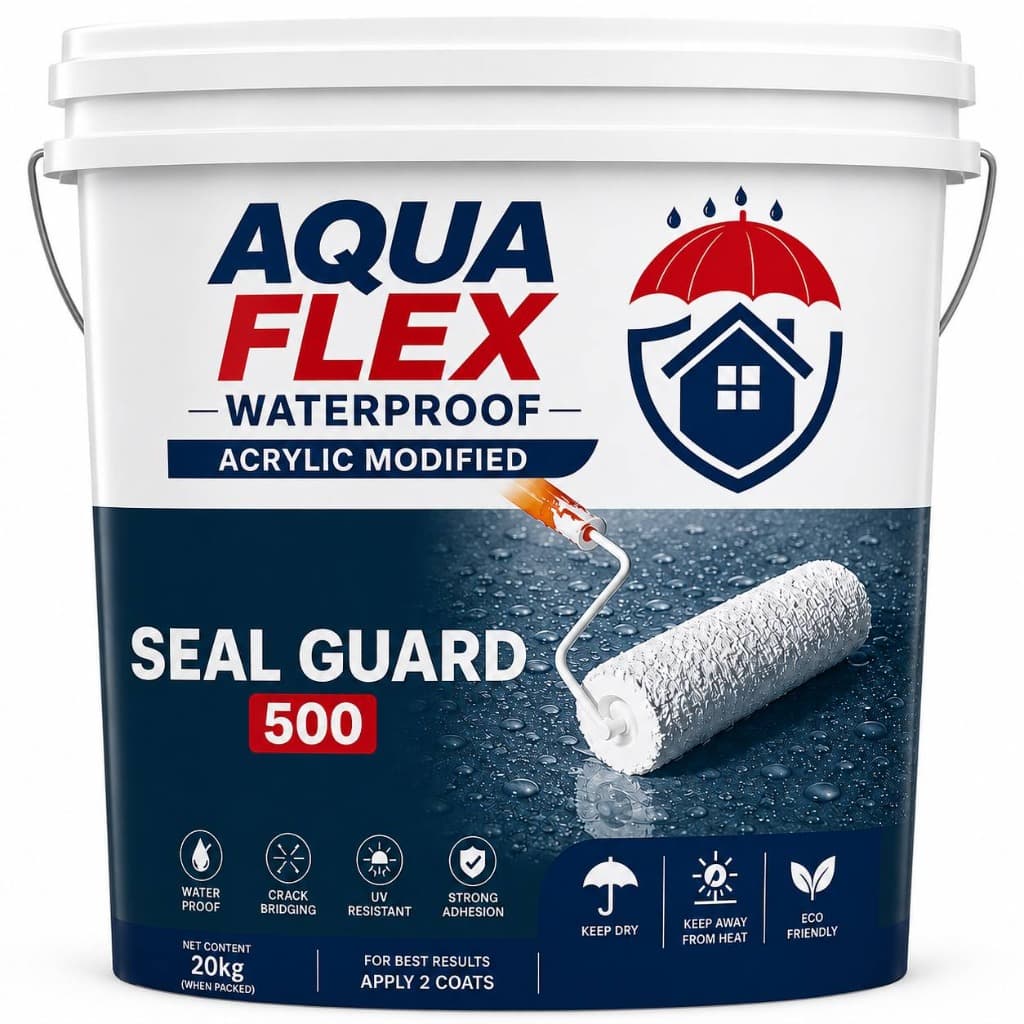

Aqua Flex Seal Guard 500 — 20kg
Polyhybrid Elastomeric Liquid Waterproofing Membrane
Engineered Membrane Protection
AQUA FLEX SG500 20kg is an advanced polyhybrid, elastomeric, water-based liquid waterproofing membrane designed for flat roofs, curved roofs, and critical structural details. Formulated with a proprietary blend of resins, it features timeless whiteness and superior UV reflectance, lowering surface temperatures and contributing to building energy efficiency. Upon curing, it forms a continuous, seamless, vapor-permeable elastomeric barrier with 350% elongation and 2.9 N/mm² adhesion strength.
Key Performance Traits
Engineered for Complete Defense
Verified physical properties formulated for demanding flat roof exposures and weather endurance.
Water Proof
Forms a continuous, seamless membrane preventing water penetration and ponding water damage.
Crack Bridging
350% elongation at break accommodates substrate expansion and micro-fissures (EN ISO 527).
UV Resistant & Cool Roof
Timeless whiteness and high solar reflectance reduce roof heat load. Passes 2000h weathering (EN 1062-11).
Strong Adhesion
Tenacious bond of 2.9 N/mm² to concrete, screeds, wood, metal, and existing membranes (EN 1542).
Technical Data
Verified Specifications & Test Standards
All values determined under laboratory conditions (+20°C / 50% R.H.) in accordance with official European standards.
| Property | Value | Test Standard / Notes |
|---|---|---|
| Product type | Polyhybrid, elastomeric liquid waterproofing membrane | |
| Net content | 20kg (when packed) | |
| Color | White | |
| Density | 1.39 ± 0.02 kg/l | |
| Elongation at break | 350% | EN ISO 527 |
| Capillary water absorption | 0.01 kg/m²·h⁰·⁵ | EN 1062-3 |
| Water vapor permeability | Sd = 0.40 m (Class I) | EN ISO 7783-2 |
| Adhesion strength | 2.9 N/mm² | EN 1542 |
| Artificial weathering | Pass (2000 h no blistering/cracking) | EN 1062-11 |
| Reaction to fire | Euroclass F | EN 13501-1 |
| Viscosity | ≥ 30,000 mPa·s | EN ISO 2884-2 |
| Service temperature | −25°C to +80°C | |
| Application temperature | Min. +5°C | |
| Drying time (+20°C) | 2 h (touch dry) | EN ISO 2811-1 |
| Recoat time (+20°C) | 20 h (touch dry) | EN ISO 2811-1 |
| Consumption (Full Surface) | 0.5–0.75 kg/m²/layer (2.0–2.5 kg/m² total) | |
| Consumption (Crack Sealing) | 0.3–0.5 kg/m (10 cm strip) | |
| Primer | ISO-PRIMER (approx. 200 g/m²) | |
| Application method | Brush or roller (2 coats applied crosswise) | |
| Storage | Keep dry, keep away from heat |
Directions For Use
Recommended Application Procedure
Follow these manufacturer directions for optimal adhesion, crack bridging, and membrane performance.
Substrate Preparation: Surface must be clean, dry, free of grease, loose particles, and dust. Repair concrete cavities in advance.
Priming: Prime the substrate with ISO-PRIMER at approx. 200 g/m². Allow to dry.
First Layer: Apply AQUA FLEX SG500 by brush or roller at 0.5–0.75 kg/m².
Crack Reinforcement: Embed 10 cm wide fiberglass mesh (65 g/m²) or polyester fleece (30 g/m²) over active cracks while first coat is fresh.
Second Layer: Apply second layer crosswise once first layer is dry and walkable (approx. 20h at +20°C).
Total Consumption: 2.0–2.5 kg/m² depending on substrate and reinforcement.
Download Technical Datasheet
Access the complete laboratory-certified technical datasheet for Aqua Flex SG500 with full specification details, chemical resistance, and European standard compliance.
Technical Datasheet — SG500 — 20kg
Edition 19.10.2021 · EN 1504-2 · CE Certificate 2032-CPR-10.11
Official DocumentProduct Inquiries
